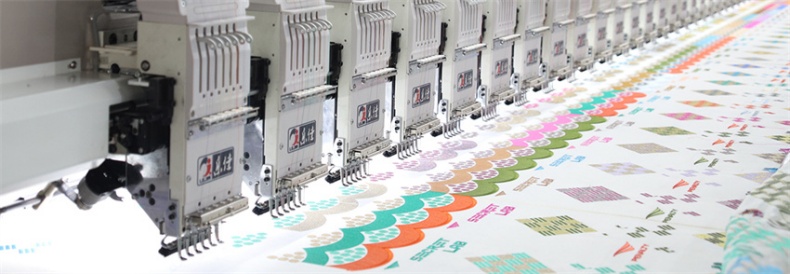

The new generation of LEJIA high-speed flat embroidery series features a unique design, stable product performance, high efficiency, and delicate embroidered products. It can use variety of materials and thickness of yarn and can expand with various additional functions. Whether it's cutting-edge fashion, top-branded clothing, creative designs, or high-capacity production of clothing fabrics, it excels in all aspects.
Machine Configuration
lHead structure: Double cam Independent presser foot (1800RPM/1500RPM), Double cam triple levers (1500RPM), Double cam double reciprocator (1200RPM), single cam double reciprocator (1000RPM), is valid. Various head structures are available; Jump motor / jump solenoid head is available, with stable and reliable. l2/3/4/6/8/9/12/15/24 needles(colors) is valid. lHead number : By customized , 1-176 heads is valid. lHead interval: Commonly with 55/82.5/110/125/150/165/200/250/300/330/400/450/500/ 800/1000mm,Can be customized. lEmbroidery area: X size can be single head/alternate head/multi-heads combination embroidery according to the embroidery process, Y max with 1800mm. lIntelligent digital display tension base (Optional), Self-design upper thread holding system. lComputer control: Various sizes of Integrated Computer with touch-screen. lSelf-design head &Main shaft self-balance system, running more smooth, with lower vibration and sound. lSelf-design take up cam/pressure foot cam. lX.Y frame use Servomotor, linear guide,imported belt, with precise control and smooth operation. lAll-Round oil lubrication system. lClosed-loop stepping motor trimming system. lStepping closed loop High Speed leadscrew color change. lAuxiliary drive shaft design. lDouble color change system,Double trimming system, Double transmission box, Double main shaft servo Motor Technology (According machine model).

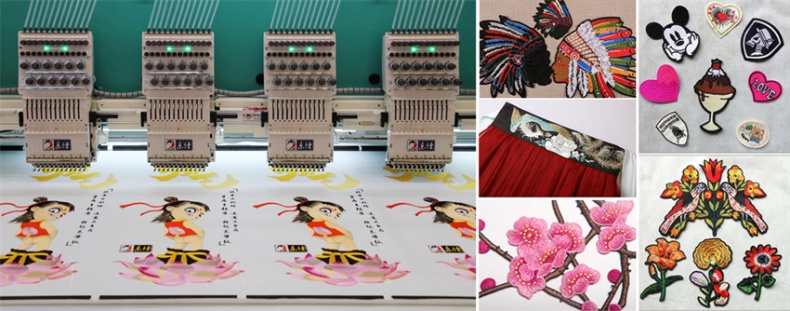

Product Application LEJIA high-speed embroidery machine is widely used in high-end brand embroidery of fashion, children's wear,wedding dress, home textiles, knitting, shuttle weaving, cotton and hemp, leather, polyester, fiber and other fabrics.
Product System

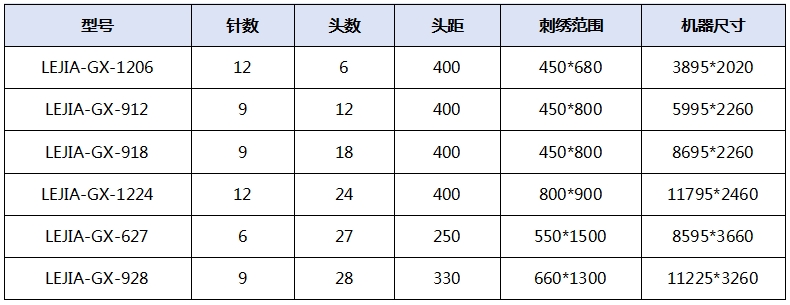

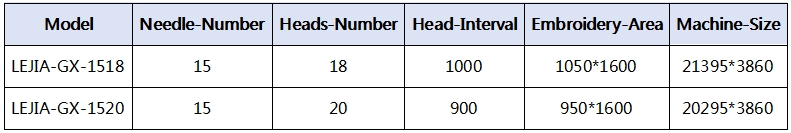

Garment Pieces Embroidery Machine -Classic Models

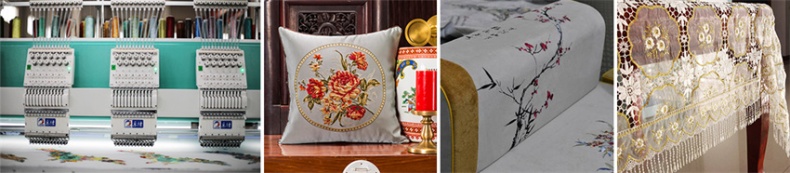

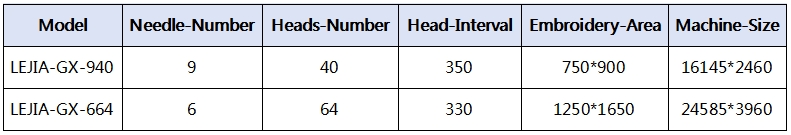

Home Textile Series Embroidery Machine-Classic Models

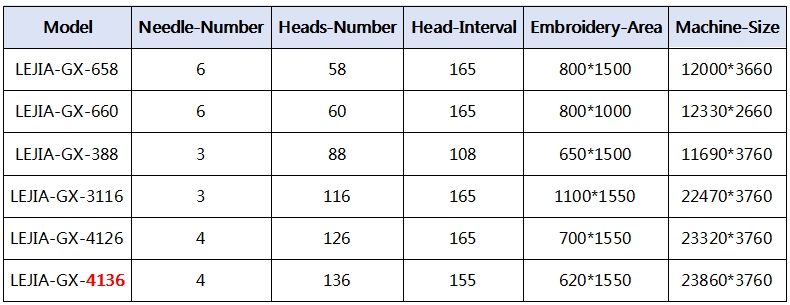

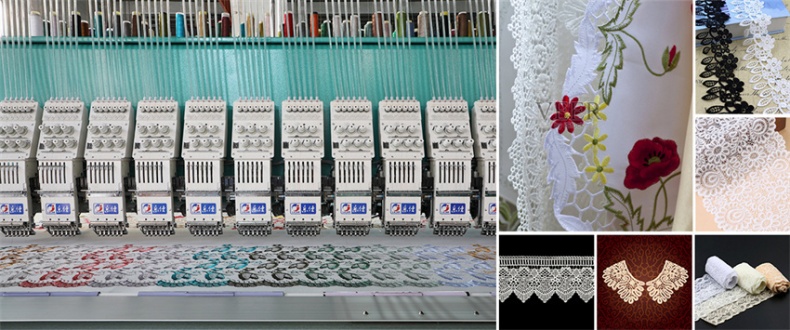

Super Multi Heads Lace Embroidery Machine -Classic Models

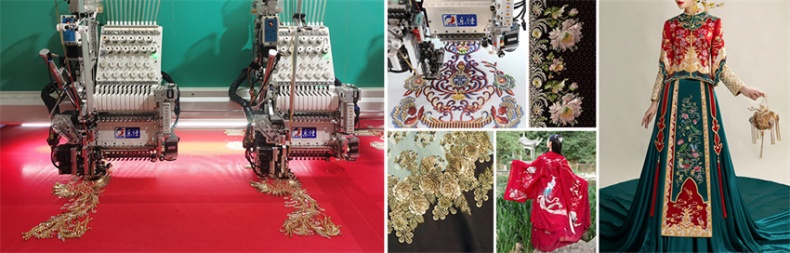

Wedding Dress Industry Embroidery Machine -Classic Models

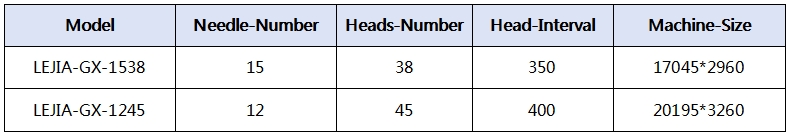

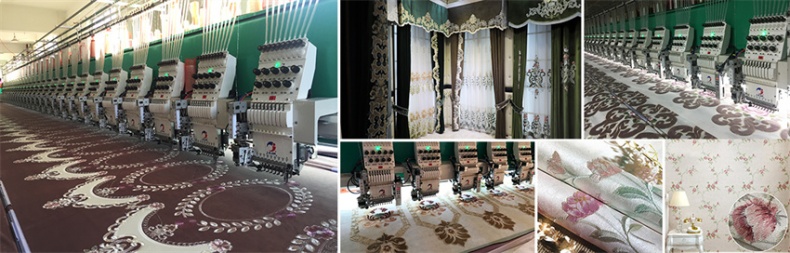

Wall Covering&Curtain Embroidery Machine -Classic Models
Option Additional Device l Sequin Device/Single & Multi Color l Bead Device/Single & Multi Color l Easy Cording Device l Lock Stitch Looping/Easy Towel Device l Boring Knife l Laser Cutting Device l Auto Bobbin Changing Device l Network Management Function l Bluetooth Remote Control |
